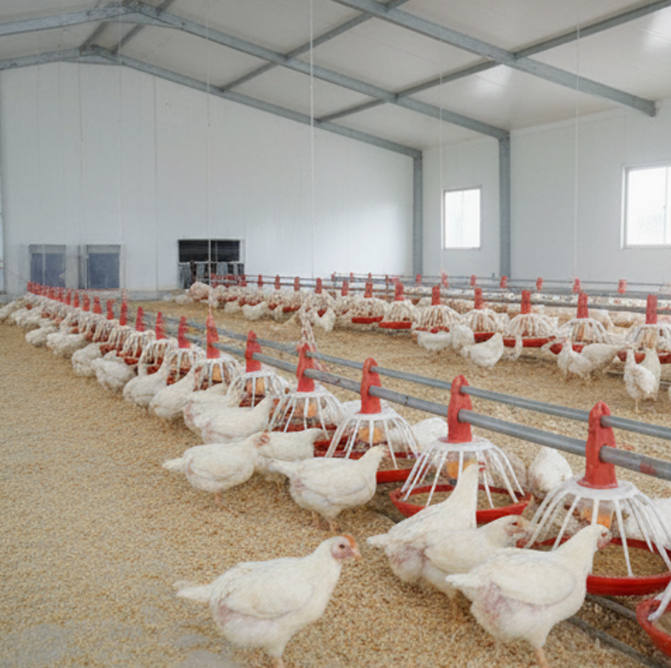

Modular Structure Closed Poultry House System with Adjustable Vents and Hot-Dip Galvanized Automatic Chicken Broiler Farm Equipment

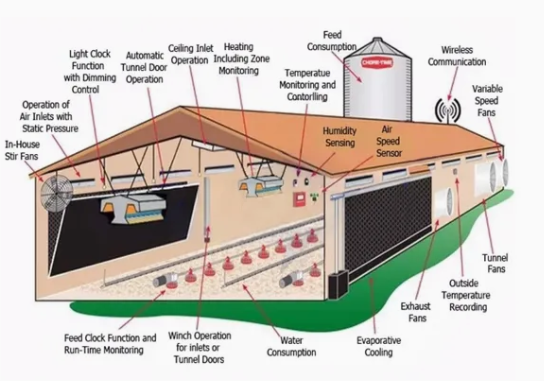

Our fully enclosed poultry house system integrates complete automatic broiler raising equipment, covering feeding, drinking, ventilation, cooling, heating and environmental monitoring as a complete solution. The steel enclosed shed creates an isolated breeding space, effectively blocking external dust, germs and wild birds to reduce disease risks. Intelligent sensors monitor indoor temperature, humidity, ammonia concentration and oxygen content in real-time; the system automatically adjusts fans, cooling pads and heating devices to maintain a constant comfortable growing environment for broilers year-round, significantly improving survival rates and growth speed.

All matched automatic breeding equipment features hot-dip galvanized anti-corrosion frames and food-grade plastic accessories, ensuring durability for long-term farm use with low maintenance costs. This closed farm solution enables unmanned intelligent management, substantially reducing labor input compared to traditional open chicken houses. We support customized house sizes and equipment layouts according to your breeding capacity, and provide comprehensive services including structural design, complete equipment production, export certification and remote installation technical guidance for medium and large commercial broiler farms.

• Automatic main feed delivery system
• Automatic pan feeding system
• Automatic nipple drinking system
• Ventilation system
• Environment control system
• Cooling pad system
• Spraying system
• Heating system
• Curtain system

The main feeding system is a complete automatic feeding solution including material conveying pipe, silo, auger, drive motor and feed level sensor. This system delivers feed from the silo to hoppers within the poultry house. A feed sensor at the end controls the drive motor to enable automatic feeding operations.

Different specifications of silos are available according to daily consumption. Silo materials include galvanized sheet and glass fiber reinforced plastic. For one or two chicken houses, we recommend using hoppers instead of silos.

Each feeding line includes a sensor that controls the motor to achieve automatic feed delivery. The motor activates when feed pans with sensors indicate low feed levels and stops when pans are full.

This system provides fresh, clean water crucial for poultry growth. The drinkers feature 360-degree triggering capability, helping young birds start well and making drinking easier.

This system controls climate conditions, providing fresh air, proper humidity and temperature for birds to ensure maximum production. Includes ventilation fans (box fan or butterfly cone fan) and air inlets.

For open chicken farms, 36" fans and air inlets may not be necessary, though curtain systems might be required.

As air passes through the pads, heat is removed through water evaporation, cooling the air before it enters the chicken farm.

• Thickness: 100mm; 150mm
• Width: 600mm
• Height (with frame): 1660mm; 1960mm; 2160mm
• Frame: Galvanized sheet/Aluminium alloy

Imported from Israel, this system saves labor and resources while ensuring optimal chicken growth environments. It establishes optimum working modes according to local climate and raising conditions.

An effective tool for cooling, damping, dedusting and disinfecting poultry houses. Temperature can be reduced by 3-8 degrees Celsius within minutes.

Proper temperature is critical for chickens, especially day-old chicks. We offer four heating options: coal, diesel, gas, or electric heaters.

In tropical zones, farmers often use curtains instead of solid walls for open farms, typically paired with large fans. Available in manual or motorized operation.

Ideal for automatic manure cleaning systems. Our floors use 100% raw materials to guarantee long service life.

30-year lifespan steel structure poultry houses available in painted or galvanized finishes.
