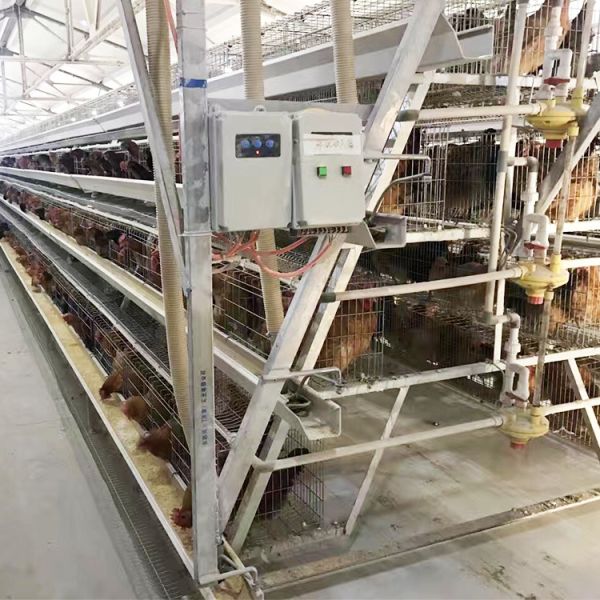

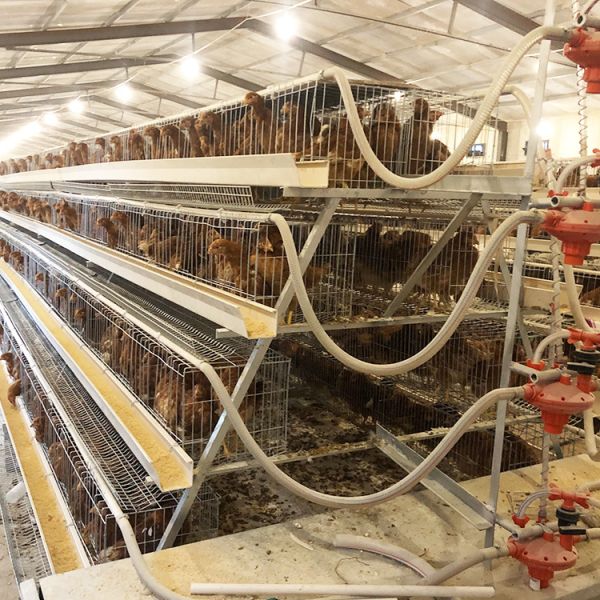

Hot-Dip Galvanized Laying Hen Cage with Automatic Feeding System and Low Maintenance for Poultry Farming

Product Categories

Qingdao KXD Steel Structure Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : KXD

Model Number : KXD-SS78

Certification : CE、ISO、SGS

Place of Origin : Qingdao，China

MOQ : 500 sqm

Price : USD 69-100 per sqm

Payment Terms : L/C,T/T

Supply Ability : 500000 tons/month

Delivery Time : 25 days

Packaging Details : steel pallet

Service Life : More than 50 years

Drawing : CAD, Tekla, 3D Model, Pkpm, Bim

Heatingsystem : Electric/Coal/Hot Water

Feedingsystem : Automatic Feeding System

Maintenance : Low Maintenance Required

Lighting : Dimmable LED energy saving bulb

Contact Now

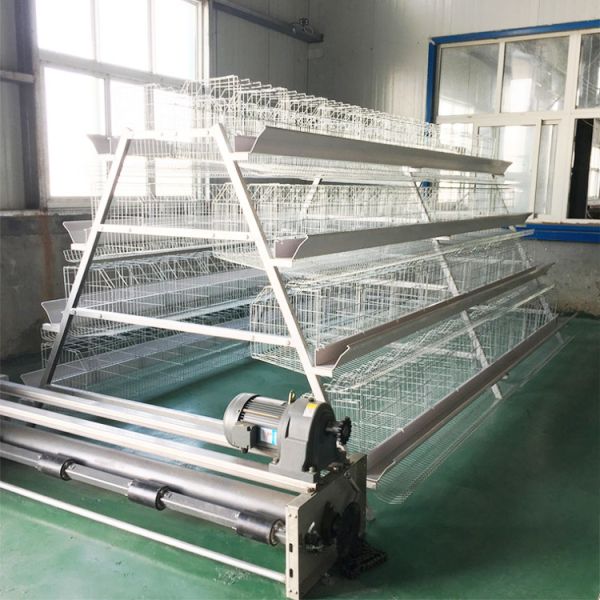

Automatic A-Type Laying Hen Egg Layer Battery Chicken Cages Equipment

Product Introduction

The full set of equipment uses hot-dip galvanized material, corrosion-resistant, which ensures a service life of 15-20 years
Intensive management and automated control. Achieves automatic feeding, drinking, manure cleaning, egg collecting and environment control, helping to improve working efficiency and save labor costs
High-density raising saves land and investment
Suitable for closed chicken houses. Automatic control of ventilation and temperature meets the requirements of the birds

Farm Configuration Examples

Chicken Layer Farm 1: Opening laying house is 122 meters long, 15 meters deep, and 4.20 meters high. Two-tier design suitable for Africa and Southeast Asia markets. 52 sets/row × 4 rows = 208 sets/house. This design allows manual poultry dung removal, no automatic manure removal machine needed.
Chicken Layer Farm 2: House is 91 meters long, 12 meters deep, and 3.5 meters high. This design requires an automatic manure removal machine.

A-Frame Galvanized Poultry Farm Chicken Cage Specifications

Two popular types: 3 layers 4 doors - 96 chickens capacity per set | 4 layers 4 doors - 128 chickens capacity per set

Type	Capacity (set)	Capacity (cell)	Cage Size	Cage Size (cell)
3 tiers 4 doors	96 birds	4 birds	1.88m × 2.1m × 1.6m	47cm × 35cm × 37cm
3 tiers 5 doors	120 birds	4 birds	1.95m × 2.1m × 1.6m	39cm × 35cm × 37cm
4 tiers 4 doors	128 birds	4 birds	1.88m × 2.3m × 1.9m	47cm × 35cm × 37cm
4 tiers 5 doors	160 birds	4 birds	1.95m × 2.3m × 1.9m	43cm × 35cm × 37cm
4 tiers 5 doors	200 birds	5 birds	2.15m × 2.3m × 2.1m	43cm × 45cm × 41cm
5 tiers 5 doors	250 birds	5 birds	2.15m × 2.3m × 2.5m	43cm × 45cm × 41cm

Cage making can be made according to clients' requirements.

Materials & Specifications

Materials	Low carbon steel wire, Q195 steel wire, Q235 steel wire
Surface Treatment	Cold Galvanization, Hot Dip Galvanization, PVC Coated
Bottom Wire Mesh Angle	9°
Lifespan	Cold Galvanization (7-10 years), Hot Dip Galvanization (15-20 years), PVC Coated (15-20 years)
Package	Full container loading: cage and cage frame are no package, some fittings are in plastic bags and carton box Less container loading: packed in wooden box and pallet
